Overview
The Class Schedule Comprehensive Proofs Report (REG_SCHED_COMP_PROOFS) produces a “Proof” sheet of the class schedule for the scheduler and departments providing detailed information related to courses for a specified term. If you do not have access to the job, please contact our Faculty & Staff Help Desk.
Accessing the Class Schedule Comprehensive Proofs Report
You may access the Class Schedule Comprehensive Proofs Report using Direct Access or the Reports menu. When you select the Class Schedule Comprehensive Proofs report, the Process Submissions Control form (GJAPCTL) will display so that you may enter the parameters required to run the report.
Accessing the Job Using the Reports and Jobs Menu
- Log into Banner.
- Click on the Applications icon
on the left navigation bar. - Expand the Banner menu.
- Expand the Reports and Jobs menu.
- Expand the Academica Affairs menu.
- Expand the Academic Departments menu.
- Expand the Department Class Scheduling menu.
- Expand the Department Class Scheduling Reports and Jobs menu.
- From the main Banner menu, expand Reports.
- Select Class Comprehensive Proofs (REG_SCHED_COMP_PROOFS).
Accessing the Job Using Search
- Log into Banner.
- Start typeing “class c” into the Search box on the main Welcome screen.
- This will pull up a list of items that have “class c” in the name. Select Class Comprehensive Proofs (REG_SCHED_COMP_PROOFS) from the list.
Running the Job

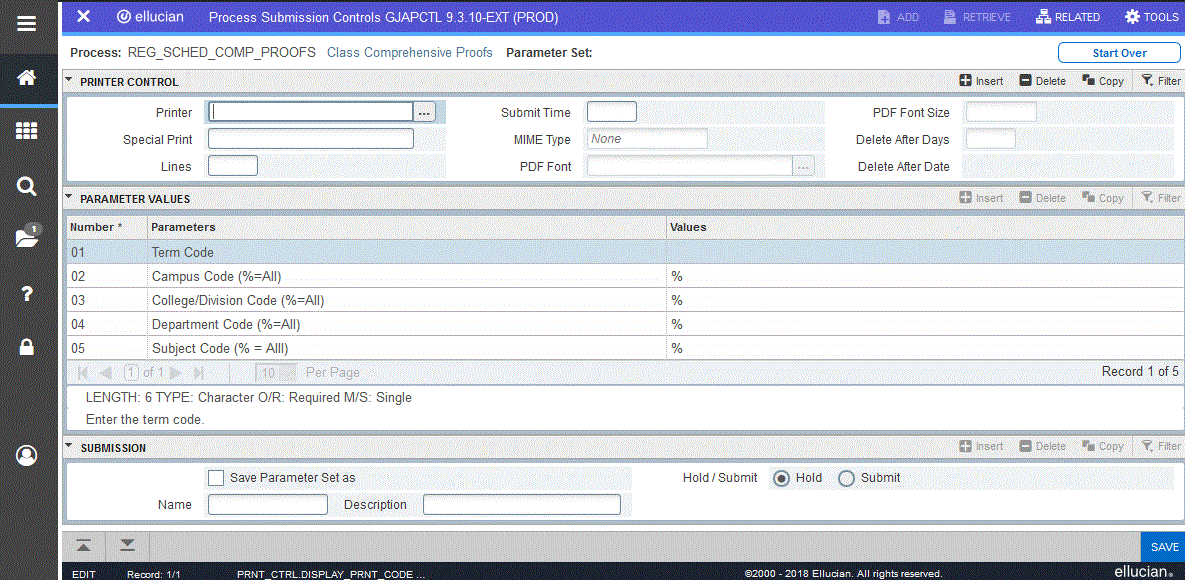

To run the job, you first need to set up the required parameters. The Process Submissions Control page (GJAPCTL) is used to enter parameters for jobs.
Key Section (Page 1 – Section 1):
The Key block specifies which report you are running. It will be pre-populated with the Class Comprehensive Proofs job (REG_SCHED_COMP_PROOFS).
Enter the following information:
- Process: Process will be pre-populated. If it is blank or has the wrong job, enter REG_SCHED_COMP_PROOFS.
- Parameter Set: Enter the name for the set of parameters you wish to use if you have saved a set of parameters previously. Otherwise, leave blank.
Click on the Go button to move to the Printer Control section.
Printer Control Section (Page 1 – Section 2):
The Printer Control block allows you to choose which printer to use, the number of lines to print per page, and the time to submit the job.
Enter the following information:
- Printer: Enter the printer code for where you want report to print. Press F9 or click the button with a caption of “…” on the right side of the text box to get a list of valid values. If you do not see your department print queue listed, call our Faculty & Staff Help Desk for assistance. If you would like to review this report online, enter DATABASE in the printer field. If you would like to have the report sent to your personal network drive (p drive), enter SFTP_PDF in the printer field.
- Special Print: Leave the value blank.
- Number of Lines: Enter the number of lines per page you wish to print or use the default already entered. Note: If you choose a larger number of lines than will fit on the page, your report will not print properly. We recommend this value is left blank.
- Submit Time: Leave the value blank if you wish report to run immediately. If you wish the report to run at a later time, enter the time in military format (i.e., 23:00 for 11:00 PM).
Choose Block/Next from the menu bar to move to the Parameter Values block or use the mouse to click into the block.
Parameter Values Section (Page 1 – Section 3):
The Parameter Values section displays a list of parameters used to create the report. As you cursor through each parameter, help text about the parameter is displayed underneath the list of parameters at the bottom of the Parameter Values section. Click on the Search icon for the Values field to see a list of valid values if one is available.
Enter the following information:
- Term: Enter the term code of the courses. Press F9 or click the button with a caption of “…” on the right side of the text box to get a list of valid values.
- Campus Code: Enter campus code of the courses. Press F9 or click the button with a caption of “…” on the right side of the text box to get a list of valid values. Use % for all campus codes.
- College (Division) Code: Enter college code of the courses. Press F9 or click the button with a caption of “…” on the right side of the text box to get a list of valid values. Use % for all college codes.
- Department Code: Enter department code of the courses. Press F9 or click the button with a caption of “…” on the right side of the text box to get a list of valid values. Use % for all department codes.
- Subject Code: Enter subject code of the courses. Press F9 or click the button with a caption of “…” on the right side of the text box to get a list of valid values. Use % for all subject codes.
Use the mouse or down and up arrow keys to cursor through the records. After entering your parameter values, use the mouse to click into the Submission Section.
Submission Section (Page 1 – Section 4):
The Submission section allows you to save your parameters for future use and to submit the job.
Enter the following information:
- Save Parameter Set as: If you wish to save the parameters to use again, check this box.
- Name: If you have checked the Save Parameter Set as box, enter a name for the parameter set. If you did not check the Save Parameter Set as box, leave Name blank.
- Description: If you have checked the Save Parameter Set as box, enter a description for the parameter set. If you did not check the Save Parameter Set as box, leave Description blank.
- Hold/Submit: Select the Submit radio button.
Click on the Save button in the bottom right corner of the page to submit your job. The report should be available within a few minutes.
